Digital Vickers VMT Series

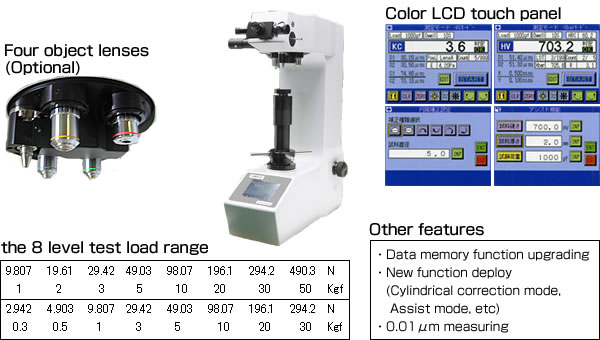

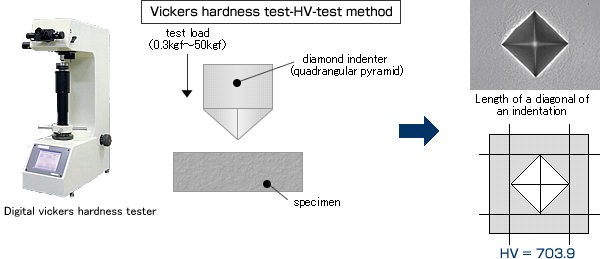

Digital vickers hardness tester VMT series
The latest vickers hardness tester of Matsuzawa which evolved with user needs
(capable to support every specimen)(click a following link, you can confirm specimen details example)
we suggest one of them which we adjusted to various needs and provide it.
Auto Turret
Auto Turret perform a series of load operations and the object lens for measuring comesautomatically back to the central position after making indention.Positive turrret stopsensure exact alignment of the indenter to the measuring and scaning objectives.This allows precise placement of the diamond impression on your test sample.

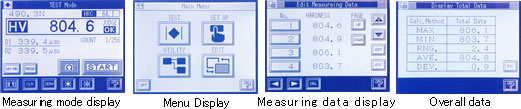

Liquid Crystal Display Touch Panel
Loaded with a LCD display with backlight.The hardness tester secure very clear and high visibility.
Ereputed Loadiing Mechanism
Loading merchanism with to fluctuation."capable to hit aimed portion", is highly evaluated.

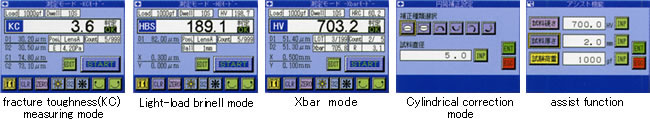

HK Knoop Hardness
Knoop hardness calculating functions can be changed over with a one-touch panel operation.(HK diamond indenter optional)
Two Object Lenses can be mounted simultaneously
In addition to the normal measuring lend(×10 or ×20), one more of different magni fication can be mounted regularly.(Additional lens isoptional)
High Rigidity Body
Newly designed VMT-7(7S) can perform high-accuracy measurements with the specially rigidity enhanced body.
Applicable to ce and safety
Safety design applicable to EU low Voltage command,EMC command and machincom mand.In addition to high-rigidity body,overturn-prevent ive metal fittings are attached as standard to prevent overturing by earthquakes etc.
abundant lineup meeting user needs
| reducing an error between measurer! | reducing an error between measurer! and reducing hardness measurement cost time! |
 |
 |
| adjusting an error between measurer with TV measuring device | measuring automatically by the latest image processing technology,measuring a plural number consecutively on an automatic stage |
 |
 |
 |
 |
Please understand, The details and quantity of specifications described in this table or in brochures maybe changed without notice following changes due to improvements.
Windows is a registed trademark by Microsoft USA in USA and other countries.
